Product Description

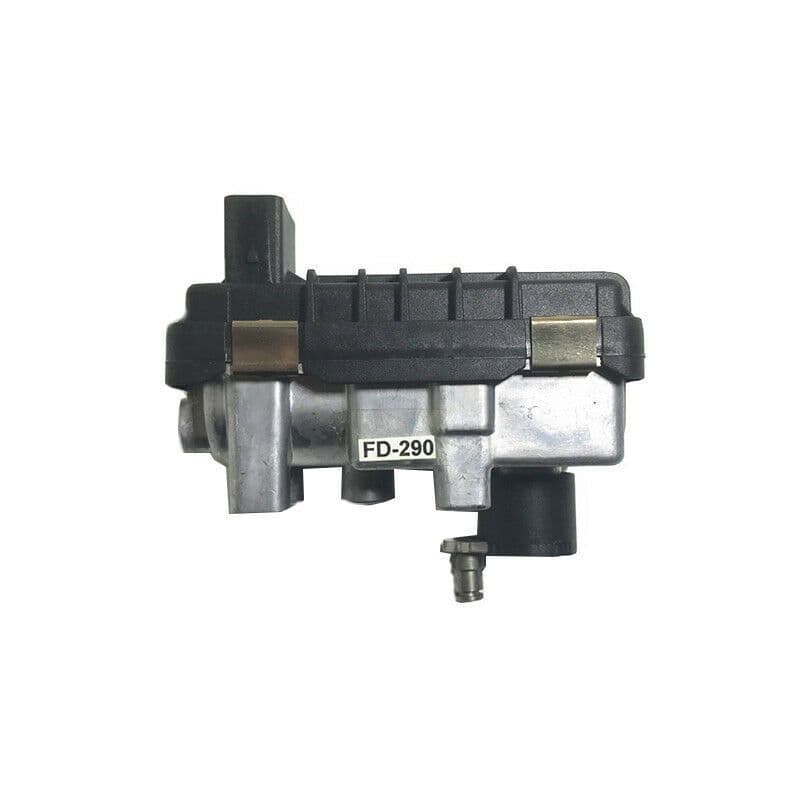

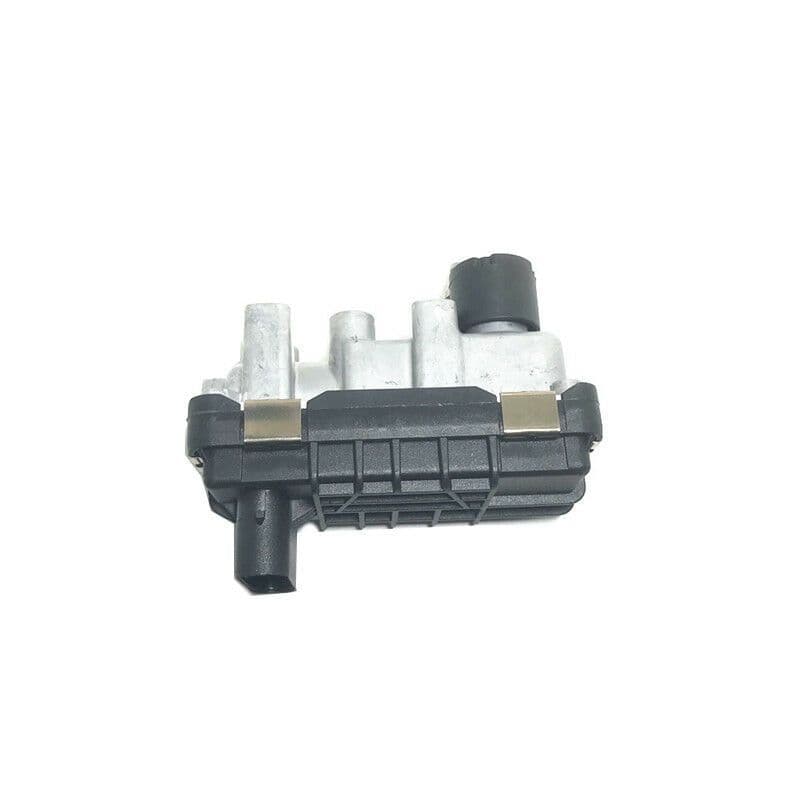

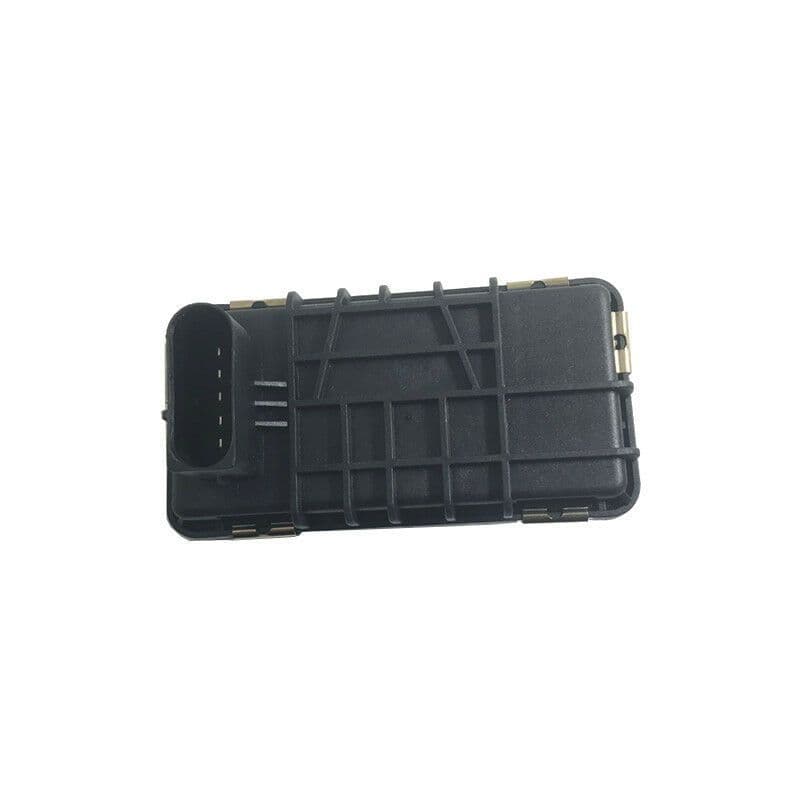

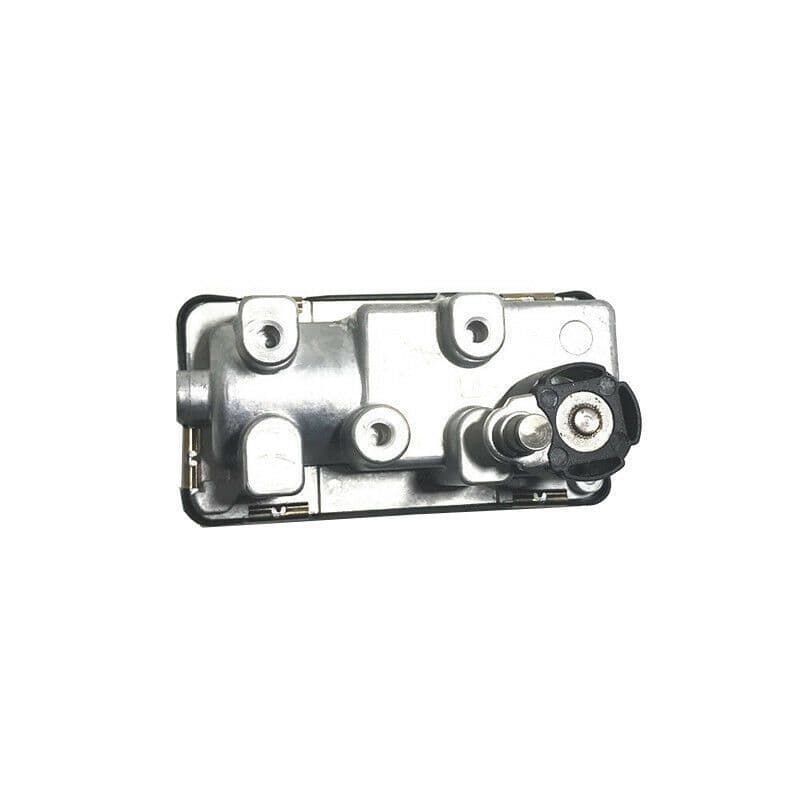

Replacement Turbocharger Electronic Actuator Fits BMW 520D X3 2.0D 150 HP

Hella NO.: 6NW008412

G-Code: G-290

Model: GT1752V




Turbo Part NO.

762965, 762965-5020S, 762965-5017S, 762965-0009, 762965-0008, 762965-0007, 762965-0003, 762965-0002, 763091-0001, 11657794022, 11657794022, 7794022H07


Fit For :

Turbo wastegate for BMW 520D E60 E61 E60N E61N 110Kw 150HP M47D20 2005-2007

Turbo wastegate for BMW 520D E60 E61 E60N E61N 120Kw 163HP M47D20 2005-2007

Turbo wastegate for BMW X3 2.0D E83 E83N 110Kw 150HP M47TU 2004-




Fast Shipping!

From UK Stock with Fast Delivery

Please Check Part Number Before Ordering.

2 Years Parts Only Guarantee with Unlimited Mileage

Exchange Reconditioned Replacement Turbo Actuator from Stock

Turbo Actuator Repairs Includes the Worm Gear, Motor, and Electronics Pre-Calibrated

So Ready to Fit. Plug and Play No Coding or Programming Needed





Actuator Deposit

We Need £100 Deposit Before Positing Actuator out as This Is an Exchange Part,

So We Need Your Old Used Faulty Actuator Back,

£100 Deposit Will Be Refunded When You Send Your Old Actuator to Us





Hella Actuator Part Numbers G-221 & G-277 & G-33 etc,,,,

Can Be Found on the Aluminium Side of the Actuator

or Send Us Your Car Reg Number and We Will Check If This Is Right for Your Car

Electronic Turbo Actuator Problems Can Be Any or All of the Following

Turbo Actuators Have Been Known for Cutting Out and Losing Power When Hot and Cold,

with the Engine Management / Glow Plug Light or Coil Light Coming on the Dashboard,

at This Point the Car Will Go into Limp Mode / Limp Home Mode.

Also, Automatic Gearbox Problem Problems.

Loss of Power Under Acceleration, Actuator Arm Not Moving at All or When Hot, No Boost, Loss of Power

This Will Start Out by Happening Sometimes and Not at Other Times

But Eventually Your Car Will Be Stuck in Limp Mode, Until the Turbo Actuator Has Been Repaired or replaced

Before Fitting Our Actuator

Please Check the Actuator Rod Which Goes into the Turbo and Makes Sure the

Turbo Vanes Are Not Sticking to Stuck

How to Check If the Turbo Vanes

with the Engine Warm or Hot Take the Cir-clip Off the Arm on the Actuator Side So the Actuator Is Now Disconnected from the Actuator Rod Then Push and Pull the Actuator Rod Arm Very Gently, to See If It Moves Freely or Sticks at Any Point. You Will Probably Find It Sticks and Does Not Move the Full Range or Freely, Normally the Vanes Will Stick or Go Tight at Either End, Especially When Hot.




Domestic postage:
Royal Mail Tracked 24 (1 to 2 working days)                         Free
Royal Mail Special Delivery(TM) 1:00 pm (1 working day)  £9.60  (orders before 2:00 pm)



Specifications

Type
Turbocharger Actuator
UPC
G-290
MPN
6NW008412
EAN
762965
Brand
Aftermarket Products
Condition
Refurbished
Product Code
EAG-290-B
Weight
0.5kg
