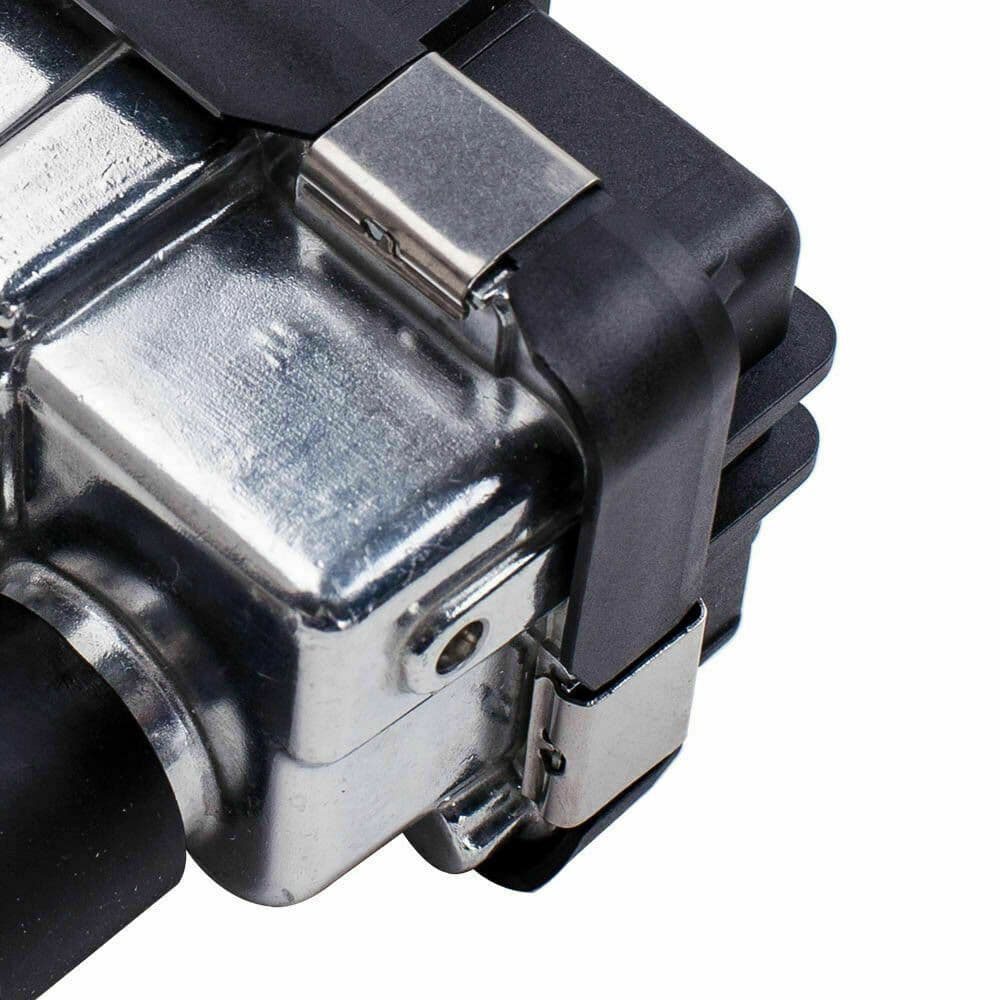

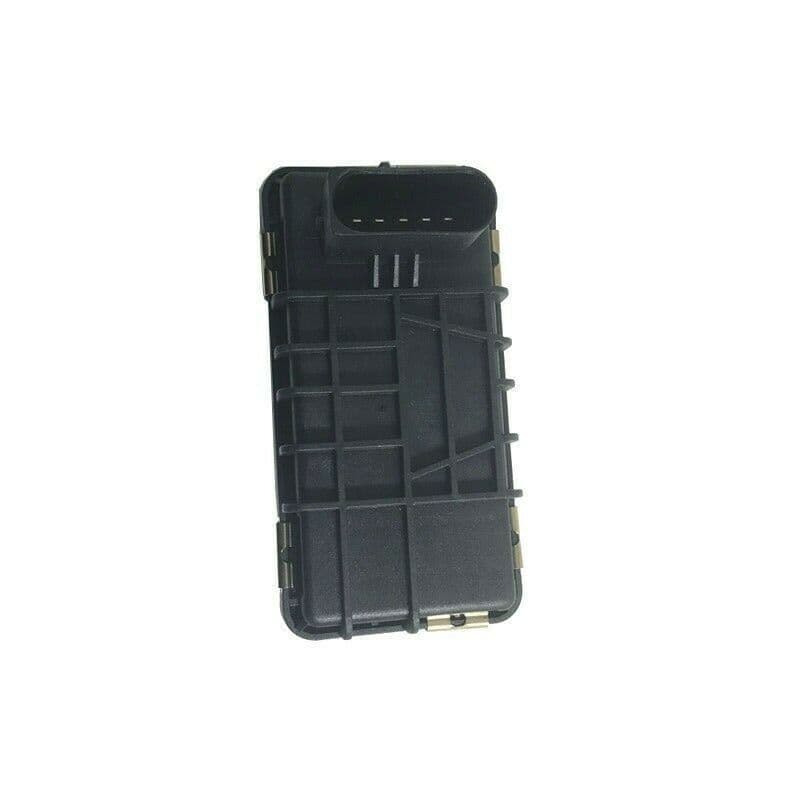

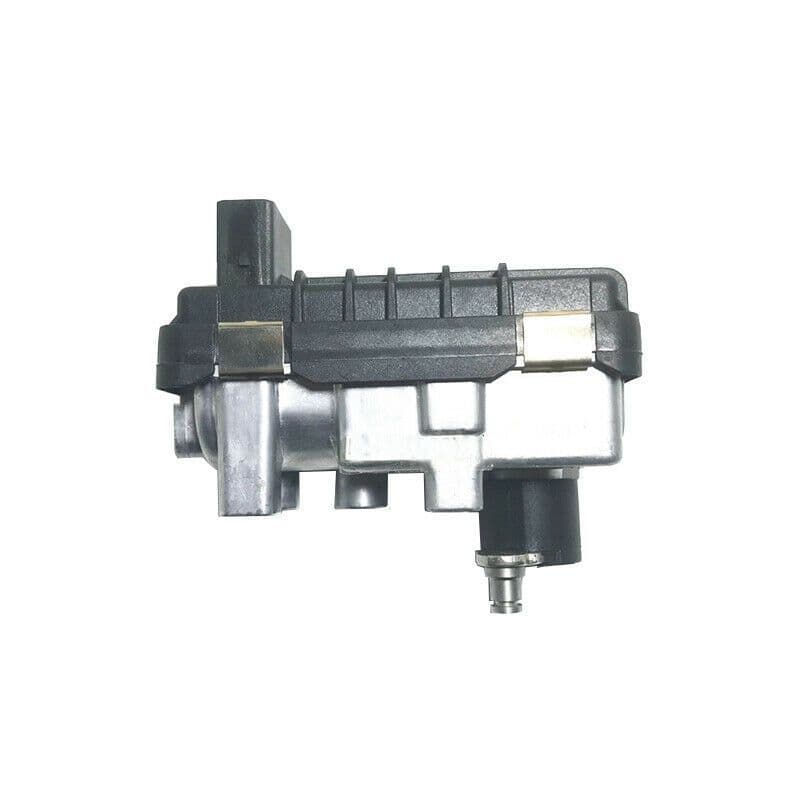

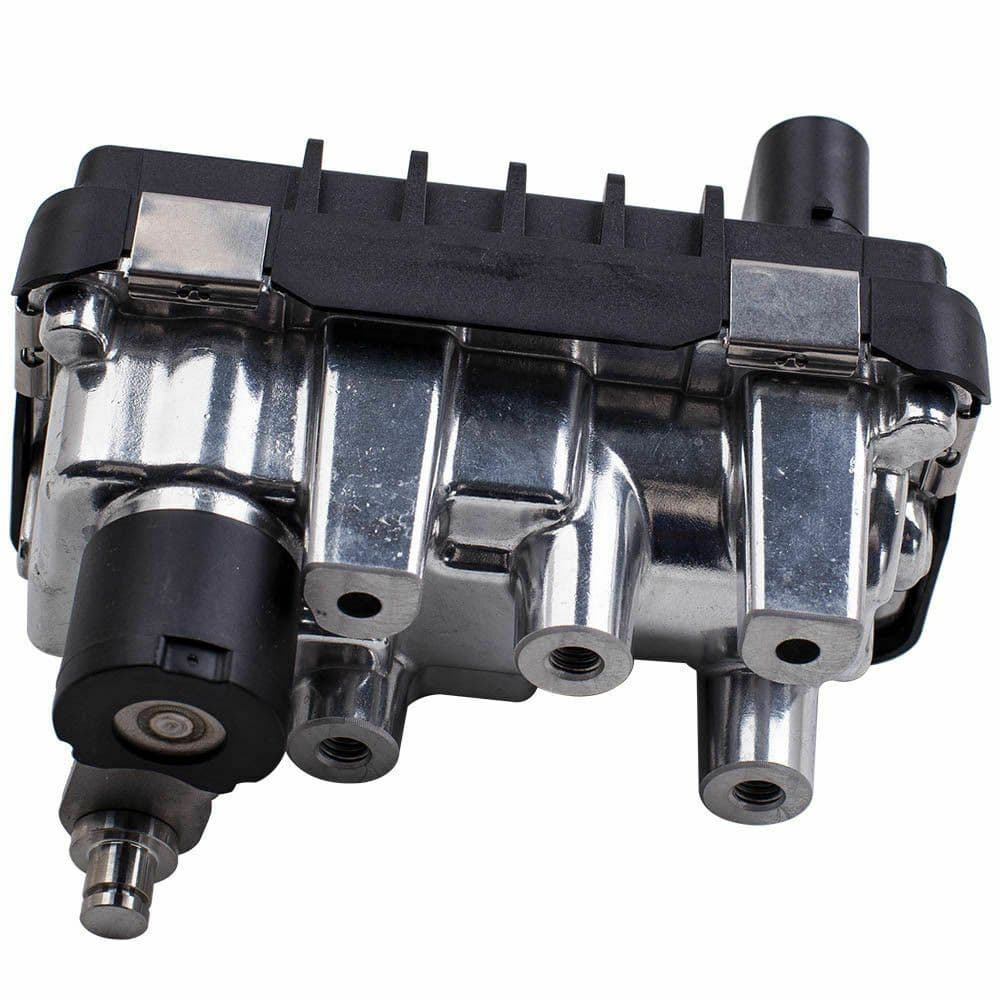

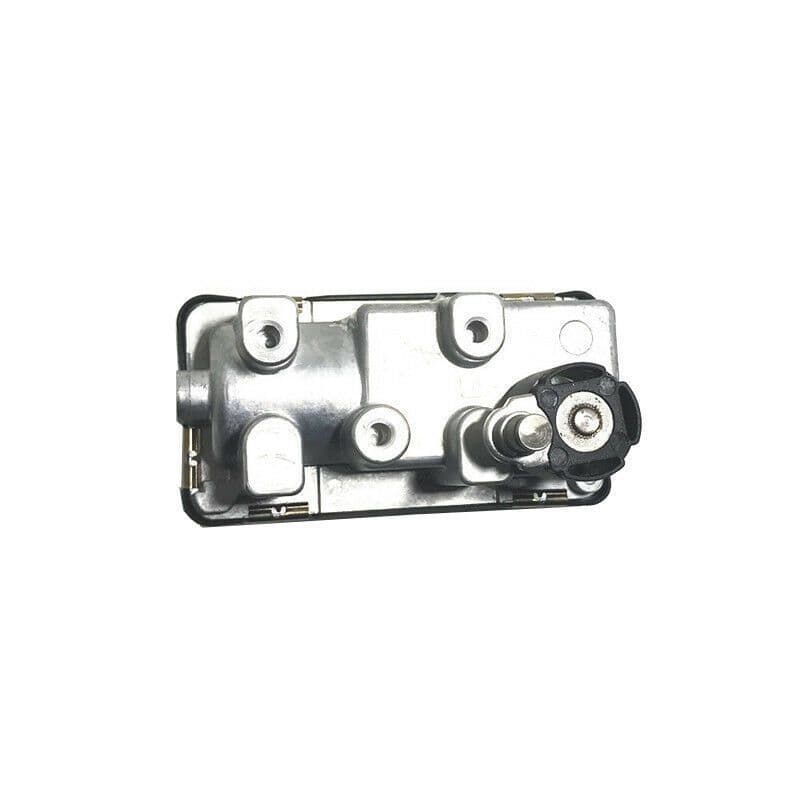

BMW X3 E83 2003-2011 Electronic Turbo Actuator G-290 6NW008412 Hella
BMW X3 E83 2003-2011 Electronic Turbo Actuator G-290 6NW008412 Hella
BMW X3 E83 2003-2011 Electronic Turbo Actuator G-290 6NW008412 Hella
BMW X3 E83 2003-2011 Electronic Turbo Actuator G-290 6NW008412 Hella
BMW X3 E83 2003-2011 Electronic Turbo Actuator G-290 6NW008412 Hella

Product Description

BMW X3 E83 2003-2011 Electronic Turbo Actuator G-290 6NW008412 Hella

Hella NO.: 6NW008412
G-Code: G-290
Model: GT1752V

Turbo Part NO:
762965, 762965-5020S, 762965-5017S, 762965-0009, 762965-0008, 762965-0007, 762965-0003, 762965-0002, 763091-0001, 11657794022, 11657794022, 7794022H07


Fit For :
Turbo wastegate for BMW 520D E60 E61 E60N E61N 110Kw 150HP M47D20 2005-2007
Turbo wastegate for BMW 520D E60 E61 E60N E61N 120Kw 163HP M47D20 2005-2007
Turbo wastegate for BMW X3 2.0D E83 E83N 110Kw 150HP M47TU 2004-


Fast Shipping!
From UK Stock with Fast Delivery
Please Check Part Number Before Ordering.


2 Years Parts Only Guarantee with Unlimited Mileage
Exchange Reconditioned Replacement Turbo Actuator from Stock
Turbo Actuator Repairs Includes the Worm Gear, Motor, and Electronics Pre-Calibrated
So Ready to Fit. Plug and Play No Coding or Programming Needed


Actuator Deposit
We Need £100 Deposit Before Positing Actuator
as This Is an Exchange Part, So We Need Your Old Used Faulty Actuator Back
£100 Deposit Will Be Refunded When You Send Your Old Actuator to Us
or
you can send your part to us first ( then no deposit needed )



Hella Actuator Part Numbers G-221 & G-277 & G-33 etc,,,,
Can Be Found on the Aluminium Side of the Actuator
or Send Us Your Car Reg Number and We Will Check If This Is Right for Your Car

Electronic Turbo Actuator Problems Can Be Any or All of the Following
Turbo Actuators Have Been Known for Cutting Out and Losing Power When Hot and Cold,
with the Engine Management / Glow Plug Light or Coil Light Coming on the Dashboard,
at This Point the Car Will Go into Limp Mode / Limp Home Mode.

Also, Automatic Gearbox Problem Problems.
Loss of Power Under Acceleration, Actuator Arm Not Moving at All or When Hot, No Boost, Loss of Power
This Will Start Out by Happening Sometimes and Not at Other Times

But Eventually Your Car Will Be Stuck in Limp Mode, Until the Turbo Actuator Has Been Repaired or replaced

Before Fitting Our Actuator

Please Check the Actuator Rod Which Goes into the Turbo and Makes Sure the

Turbo Vanes Are Not Sticking to Stuck

How to Check If the Turbo Vanes with the Engine Warm or Hot Take the Cir-clip Off the Arm on the Actuator Side So the Actuator Is Now Disconnected from the Actuator Rod Then Push and Pull the Actuator Rod Arm Very Gently, to See If It Moves Freely or Sticks at Any Point. You Will Probably Find It Sticks and Does Not Move the Full Range or Freely, Normally the Vanes Will Stick or Go Tight at Either End, Especially When Hot.



Domestic postage:
Royal Mail Tracked 24 (1 to 2 working days)                         Free
Royal Mail Special Delivery(TM) 1:00 pm (1 working day)  £9.60  (orders before 2:00 pm)



Specifications

Type
Turbocharger Actuator
UPC
G-290
MPN
6NW008412
EAN
762965
Brand
Garrett
Condition
Refurbished
Product Code
G-290
Weight
0.5kg
