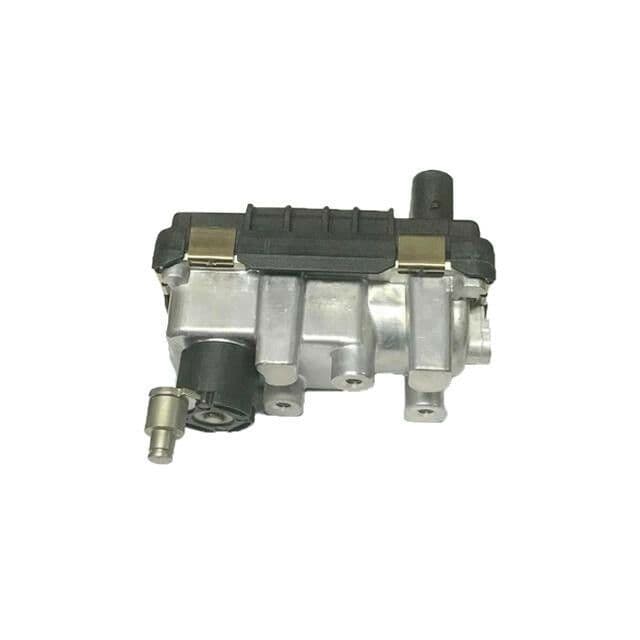

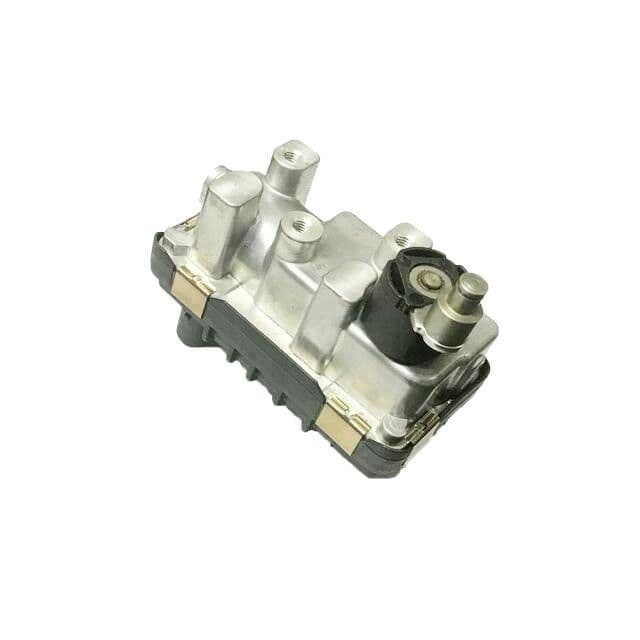

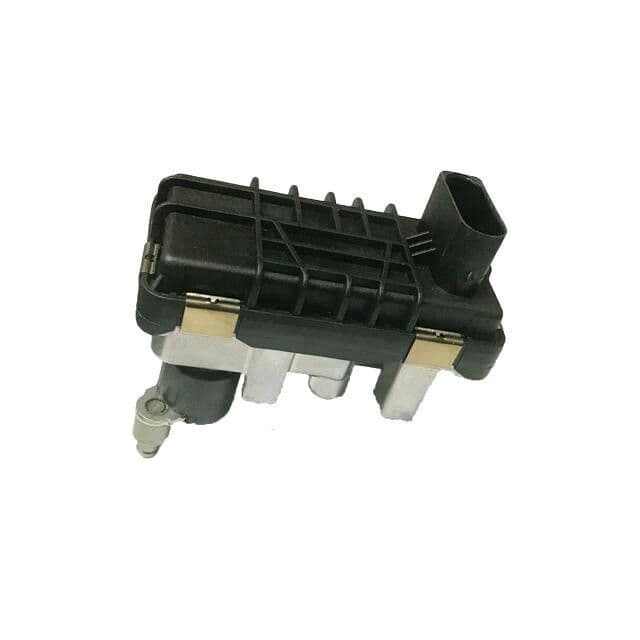

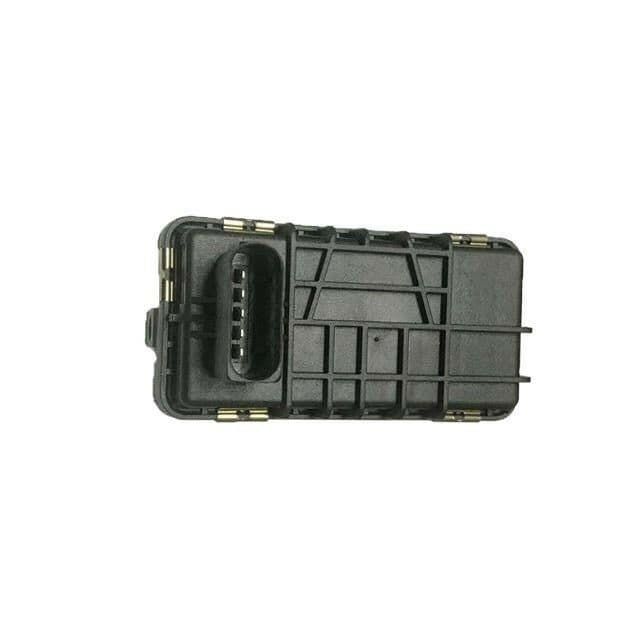

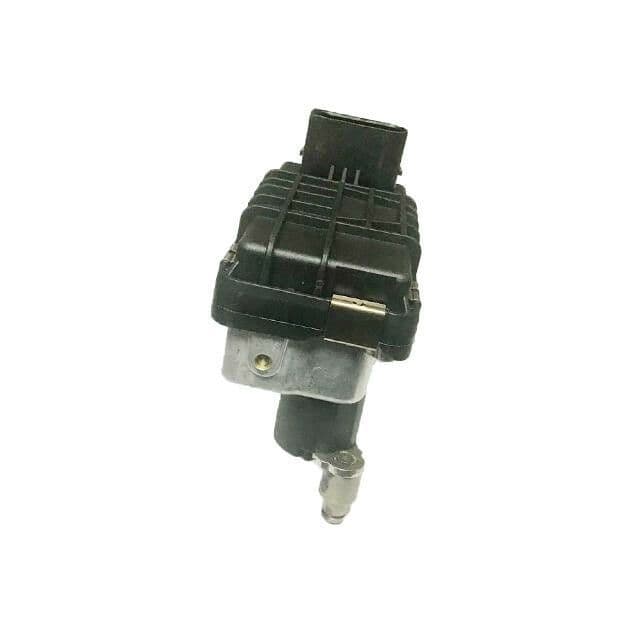

BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella G-013
BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella G-013
BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella G-013
BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella G-013
BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella G-013

Product Description

Fits BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella

Hella NO.: 6NW009550
G-Code: G-013,G-13,G013, G13

Turbo Part OE NO.
758351, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, GTB2260VK, 7794260, 7794259F, 7794259H, 7794259L, A7794259H, 7794259K10, 7794259M12, 7794259N13, 7794259O14, 7794260O14, 7794260Q16, 7794260R17, 7794260014, A7794260014, 11657794260, 11657794259F, 1111657794259L, 11657794259K10, 11657794259M12, 11657794259N13, 11657794259O14, 11657794260O14, 11657794260Q16, 11657794260R17


Fit For :
Turbo actuator for BMW 525D E60 E61 3.0D 235HP 173Kw M57N2 2007-
Turbo actuator for BMW 525XD E60 E61 3.0XD 231HP 170Kw M57N3 2005-
Turbo actuator for BMW 525XD E60 E61 3.0XD 235HP 173Kw M57N4 2007-
Turbo actuator for BMW 530D E60 E61 3.0D 231HP 170Kw M57N5 2005-
Turbo actuator for BMW 530D E60 E61 3.0D 235HP 173Kw M57N6 2007-
Turbo actuator for BMW 530XD E60 E61 3.0XD 231HP 170Kw M57N7 2005-
Turbo actuator for BMW 530XD E60 E61 3.0XD 235HP 173Kw M57N8 2007-
Turbo actuator for BMW 730D E65 E66 3.0D 231HP 170Kw M57N9 2005-
Turbo actuator for BMW 730D E65 E66 3.0D 235HP 173Kw M57N10 2007-
Turbo actuator for BMW 730LD 3.0LD 231HP 170Kw M57N11 2005-
Turbo actuator for BMW 730LD E65 E66 3.0LD 235HP 173Kw M57N12 2007-


Fast Shipping!
From UK Stock with Fast Delivery
Please Check Part Number Before Ordering.

2 Years Parts Only Guarantee with Unlimited Mileage
Exchange Reconditioned Replacement Turbo Actuator from Stock
Turbo Actuator Repairs Includes the Worm Gear, Motor, and Electronics Pre-Calibrated
So Ready to Fit. Plug and Play No Coding or Programming Needed


Actuator Deposit
We Need £100 Deposit Before Positing Actuator
as This Is an Exchange Part, So We Need Your Old Used Faulty Actuator Back
£100 Deposit Will Be Refunded When You Send Your Old Actuator to Us
or
you can send your part to us first ( then no deposit needed )


Hella Actuator Part Numbers G-221 & G-277 & G-33 etc,,,,

Can Be Found on the Aluminium Side of the Actuator or Send Us Your Car Reg Number and We Will Check If This Is Right for Your Car

Electronic Turbo Actuator Problems Can Be Any or All of the Following Turbo Actuators Have Been Known for Cutting Out and Losing Power When Hot and Cold, with the Engine Management / Glow Plug Light or Coil Light Coming on the Dashboard, at This Point the Car Will Go into Limp Mode / Limp Home Mode.

Also, Automatic Gearbox Problem Problems.

Loss of Power Under Acceleration, Actuator Arm Not Moving at All or When Hot, No Boost, Loss of Power This Will Start Out by Happening Sometimes and Not at Other Times But Eventually Your Car Will Be Stuck in Limp Mode, Until the Turbo Actuator Has Been Repaired or replaced

Before Fitting Our Actuator Please Check the Actuator Rod Which Goes into the Turbo and Makes Sure the Turbo Vanes Are Not Sticking to Stuck How to Check If the Turbo Vanes with the Engine Warm or Hot Take the Cir-clip Off the Arm on the Actuator Side So the Actuator Is Now Disconnected from the Actuator Rod Then Push and Pull the Actuator Rod Arm Very Gently, to See If It Moves Freely or Sticks at Any Point. You Will Probably Find It Sticks and Does Not Move the Full Range or Freely, Normally the Vanes Will Stick or Go Tight at Either End, Especially When Hot.



Domestic postage:
Royal Mail Tracked 24 (1 to 2 working days)                         Free
Royal Mail Special Delivery(TM) 1:00 pm (1 working day)  £9.60  (orders before 2:00 pm)



Specifications

Type
Turbocharger Actuator
UPC
G-013
MPN
6NW009550
EAN
758351
Brand
Garrett
Condition
Refurbished
Product Code
G-013
Weight
0.5kg

Customer reviews

No reviews left yet
Write A Review

Fits BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella

Hella NO.: 6NW009550
G-Code: G-013,G-13,G013, G13

Turbo Part OE NO.
758351, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, GTB2260VK, 7794260, 7794259F, 7794259H, 7794259L, A7794259H, 7794259K10, 7794259M12, 7794259N13, 7794259O14, 7794260O14, 7794260Q16, 7794260R17, 7794260014, A7794260014, 11657794260, 11657794259F, 1111657794259L, 11657794259K10, 11657794259M12, 11657794259N13, 11657794259O14, 11657794260O14, 11657794260Q16, 11657794260R17


Fit For :
Turbo actuator for BMW 525D E60 E61 3.0D 235HP 173Kw M57N2 2007-
Turbo actuator for BMW 525XD E60 E61 3.0XD 231HP 170Kw M57N3 2005-
Turbo actuator for BMW 525XD E60 E61 3.0XD 235HP 173Kw M57N4 2007-
Turbo actuator for BMW 530D E60 E61 3.0D 231HP 170Kw M57N5 2005-
Turbo actuator for BMW 530D E60 E61 3.0D 235HP 173Kw M57N6 2007-
Turbo actuator for BMW 530XD E60 E61 3.0XD 231HP 170Kw M57N7 2005-
Turbo actuator for BMW 530XD E60 E61 3.0XD 235HP 173Kw M57N8 2007-
Turbo actuator for BMW 730D E65 E66 3.0D 231HP 170Kw M57N9 2005-
Turbo actuator for BMW 730D E65 E66 3.0D 235HP 173Kw M57N10 2007-
Turbo actuator for BMW 730LD 3.0LD 231HP 170Kw M57N11 2005-
Turbo actuator for BMW 730LD E65 E66 3.0LD 235HP 173Kw M57N12 2007-


Fast Shipping!
From UK Stock with Fast Delivery
Please Check Part Number Before Ordering.

2 Years Parts Only Guarantee with Unlimited Mileage
Exchange Reconditioned Replacement Turbo Actuator from Stock
Turbo Actuator Repairs Includes the Worm Gear, Motor, and Electronics Pre-Calibrated
So Ready to Fit. Plug and Play No Coding or Programming Needed


Actuator Deposit
We Need £100 Deposit Before Positing Actuator
as This Is an Exchange Part, So We Need Your Old Used Faulty Actuator Back
£100 Deposit Will Be Refunded When You Send Your Old Actuator to Us
or
you can send your part to us first ( then no deposit needed )


Hella Actuator Part Numbers G-221 & G-277 & G-33 etc,,,,

Can Be Found on the Aluminium Side of the Actuator or Send Us Your Car Reg Number and We Will Check If This Is Right for Your Car

Electronic Turbo Actuator Problems Can Be Any or All of the Following Turbo Actuators Have Been Known for Cutting Out and Losing Power When Hot and Cold, with the Engine Management / Glow Plug Light or Coil Light Coming on the Dashboard, at This Point the Car Will Go into Limp Mode / Limp Home Mode.

Also, Automatic Gearbox Problem Problems.

Loss of Power Under Acceleration, Actuator Arm Not Moving at All or When Hot, No Boost, Loss of Power This Will Start Out by Happening Sometimes and Not at Other Times But Eventually Your Car Will Be Stuck in Limp Mode, Until the Turbo Actuator Has Been Repaired or replaced

Before Fitting Our Actuator Please Check the Actuator Rod Which Goes into the Turbo and Makes Sure the Turbo Vanes Are Not Sticking to Stuck How to Check If the Turbo Vanes with the Engine Warm or Hot Take the Cir-clip Off the Arm on the Actuator Side So the Actuator Is Now Disconnected from the Actuator Rod Then Push and Pull the Actuator Rod Arm Very Gently, to See If It Moves Freely or Sticks at Any Point. You Will Probably Find It Sticks and Does Not Move the Full Range or Freely, Normally the Vanes Will Stick or Go Tight at Either End, Especially When Hot.



Domestic postage:
Royal Mail Tracked 24 (1 to 2 working days)                         Free
Royal Mail Special Delivery(TM) 1:00 pm (1 working day)  £9.60  (orders before 2:00 pm)


No reviews left yet
Write A Review

Type
Turbocharger Actuator
UPC
G-013
MPN
6NW009550
EAN
758351
Brand
Garrett
Condition
Refurbished
Product Code
G-013
Weight
0.5kg
